Plastic Board Digital Acrylic Sheet Cutting Machine / Canvas Cutting Machine

Maxwell (China)Technology Co.,Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Plastic Board Digital Acrylic Sheet Cutting Machine / Canvas Cutting Machine

  • 1
  • 2
  • 3

Brand Name : MAXWELL

Model Number : MEC

Certification : CE

Place of Origin : CHINA

MOQ : 1 UNIT

Price : 3000USD

Payment Terms : TT

Supply Ability : 30 sets per month

Delivery Time : WITHIN ONE MONTH

Packaging Details : WOODEN BOX

Product Name : PP foam digital cutter

Model : DCZ733520RS

Effective cutting area : 3500mm*2000mm

Colour : grey

Smallest cutting diameter : 3.5mm

Maximum cutting thickness : 40mm

Contact Now

Acrylic sheet cutting machine canvas PVC expansion sheet, PS board, acrylic, plastic board digital cut vacuum digital steel

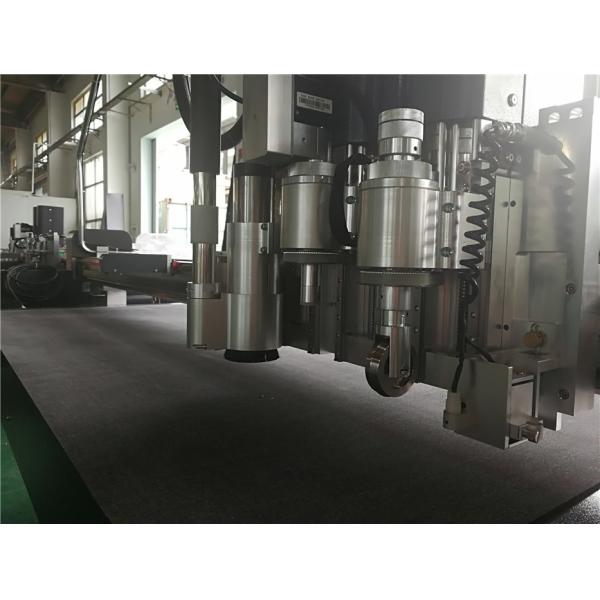

Our DCZ77 series high speed digital flatbed cutter is equipped with a particular router and convey belt system, and other tools including the oscillating knife, creasing Wheel, drag knife, V cut knife and pen can be customized according to customer’s require. It can cut various kinds soft materials, such as corrugated paper, honeycomb board, paperboard, foam, grey board, KT board, PVC expansion sheet etc. Materials used in advertisement industry, like plastic, acrylic, PS board and PVC can also be cut by our digital flatbed cutting machine. It can also realize the continuous cutting of the roll and flat material by equipping the convey belt. This product also called box sample maker, sample maker, AD cutting machine, Display cutting machine, foam cutting machine, smart digital cutting system and so on, according to the different cutting material and application. This product can be used for sample making and small scale production in the industries of packaging, printing, advertisement, etc.

Main features:

a.Three independent module, cover all major materials

b.New vacuum area design, stronger suction

c.Exchangeable tools, better expansion

d.High speed imported spindle, smoother in the cutting edge

WHAT ARE THE BENEFITS?

1. Easy to use

  • AOKE tables are easy to install and simple to set-up and use. The table is programmed for use with AOKECUT software, which apart from the manual adjustment for the depth of the knife, will reduce the need for hands-on setup of the table.

2. Saves time and money whilst improving quality

  • Eliminates the cost and time you spend cutting paper patterns and making brass bound pattern boards.
  • Greatly reduces the time taken to hand cut sample and graded paper patterns.
  • Consistent accuracy throughout, utilizing the AOKECUT CAD software, any modifications to the pattern can be re-cut quickly and efficiently.
  • Reduces your lead times for samples, short production runs and overall pattern development time for both sampling and production, helping you to provide that 'quick response' your customer demands.

Cutting materials:

Corrugated paper, honeycomb board, card paper, foam, grey board, Advertising cloth, flag cloth, canvas, KT board, PVC expansion sheet, PS board, acrylic, plastic board etc.

Application:

Ads, Display, Packaging, Graphic.

Specification:

Model DCZ772516 DCZ771713 DCZ771310
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000
Configuration Oscillating knife,pen,creasing tool,drag knife, foam knife, v cut knife, router system, convey belt
Router Speed 50000RPM or 25000RPM
Max aped 1400mm/s
Driver Servo
Precision ≤0.1mm
Maximum cutting thickness 60mm
Data form HPGL,DXF,PDF
Voltage 220v±10%50Hz
Data port parallel port,serial port,USB port
Option Video registration system, feeding and blanking system
Occupy dimension(L*W*H) 3500*3460*1400mm 2700*3160*1400mm 2300*2830*1400mm
Note Other size can be customized

Optional

Video registration system, feeding and blanking system

Plastic Board Digital Acrylic Sheet Cutting Machine / Canvas Cutting Machine
